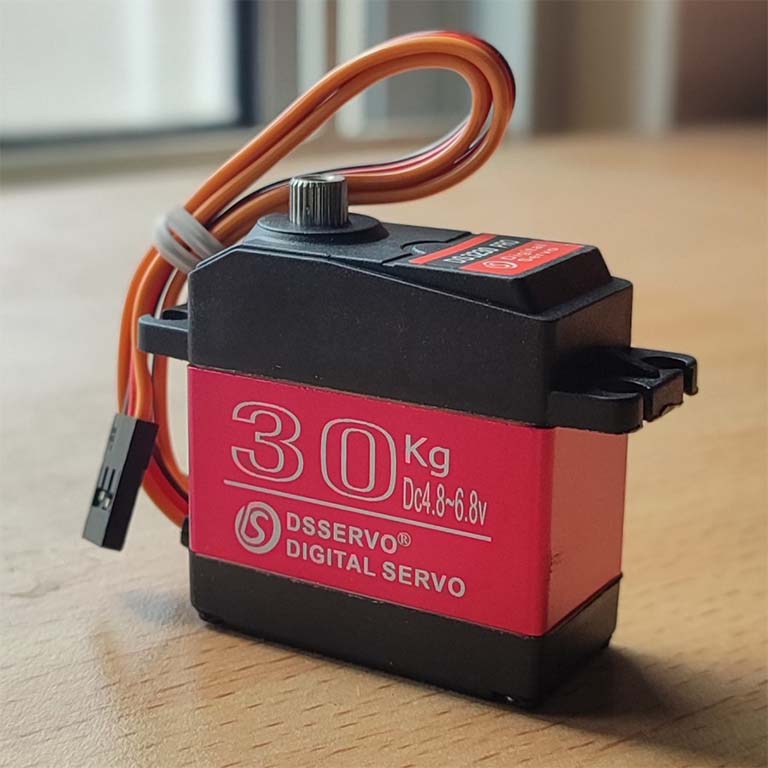

DS Servo DS3230 30kg PRO

Seri 30KG PRO ini merupakan salah satu servo DS terlaris
– Torsi besar dengan kecepatan respon yang baik
– Bahan gear lebih bagus lebih kuat
– Cocok untuk RC Offroad Monster Truck, Buggy, Crawler, Scale Adventure, Robotic, Boat DLL

Specifications:
Brand: DS
Item: DSSERVO DS3230 Digital Servo Pro
Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 58g±2g
3. Limit angle: 360 degree
4.Bearing: 2BB
5.Case : Engineering plastics+Aluminum alloy
6.Connector wire: 320mm±5mm
7.Motor: Carbon brush motor Electrical

Specification:
Working voltage range: 4.8 – 6.8V
Operating speed ( 5.0V ): 0.2 sec/60 degree
Operating speed ( 6.8V ): 0.17 sec/60 degree
Stall torque ( 5.0V ): 29.5kg/cm
Stall torque ( 6.8V ):34.5kg/cm
Command signal: Pulse width modification
Amplifier type: Digital controller Pulse width range: 500～2500usec
Neutral position: 1500usec Running degree: 180±3°(PWM 500～2500usec)
Dead band width: 3 usec
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal
Rotating direction Counterclockwise: (when 1000～2000usec)

Package Included: 1 x 30KG Digital Servo Pro TANPA HORN ALU
